Products
Features
Maximum Capacity.  Main valve chamber
has an interior diameter of 5 1/2".  The
smaller chamber has an interior
diameter of 4".

Minimum Training.  Proficiency is quickly
acquired to incorporating Humat Valves into
your attach procedures.  1/4 turn of the
handle for full operation.

Simplicity of Design.  Only one manual
control for complete operation.  The handle
position immediately indicates whether the
interior butterfly valve is open or closed.

No Reverse Twist.  Operation is equally
efficient with smaller chamber in up or down
position depending on location of fire.

Flow Never Interrupted.  Water flow is
increased from hydrant pressure to pump
pressure automatically with no interruption
of flow when pump pressure is activated.

Versatility.  Flanged couplings are
available with virtually any nonstandard
thread or waterway size, including Storz
type couplings.
Humat 4-Way Hydrant Valves
NOTICE:  Bracket straps periodically need to be
inspected for wear and tear.
The Humat 4-Way Hydrant Valve

Width is approximately 14 inches
Length is approximately 14 inches
Height is approximately 16 inches

With Hydrant wrench
Length is approximately 20 inches

Bid Specification Text

A 4-way hydrant valve made of
hard-coated, light-weight
aluminum alloy, having a main
chamber interior diameter of 5
1/2" controlled by a butterfly valve
with positive locks in open and
closed positions and having a
small chamber with an interior
diameter of 4" controlled by a
clapper valve operated
automatically by differential
pressure, all threads to be
attached by way of detachable
flanges utilizing "O" rings.
p\n SRB01RR
Length - 8 1/2"
Width - 6"
Height -7"
 Rigid Bracket
w/Strap
p\n SRB01RRST
Length - 8 1/2"
Width - 6"
Height -7"
p\n FDB01ST
Length - 9"
Width - 6"
Height - 9"
Fold out length of 22"
Humat is concerned with mounting the rigid bracket on
the tailboard because we believe it to be a  safety
issue, should a firefighter fall on or catch a
pant leg on the empty bracket.

Humat sells the fold down bracket for the tailboard.
However Humat understands fire departments need to
make things work to fit their engines and hose
evolutions.
Copyright 2010 Humat Incorporated.  All rights reserved.

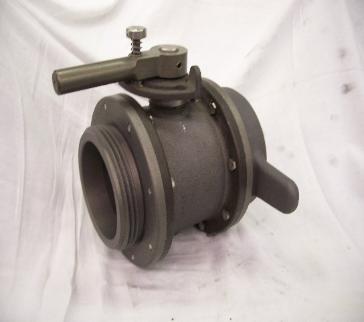

THE HUMAT "SIMPLA VALVE"

5.50 INCH BORE BUTTERFLY VALVE

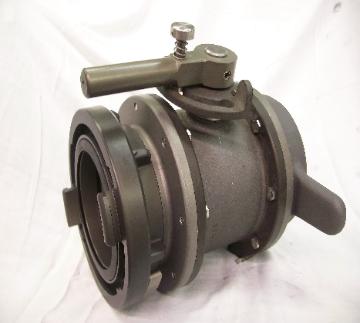

MODULAR FLANGES ACCEPT ANY THREAD OR STORZ COUPLING

NEVER OBSOLETE

STD VALVE HAS ONE MALE AND ONE FEMALE





















OVERALL LENGTH W/FLANGES - 9"
USES:
                            W/O FLANGES  - 5"                                                       TANKER GATE
                                          WIDTH   - 8"                                                       HYDRANT GATE
                                 HEIGHT STD - 11"                                                     INLINE
                                 LONG NECK - 16 1/2"                                              REMOTE
       WEIGHT W/STD FLANGES - 18 LBS

AVAILABLE FLANGES                                                                FLANGES AND INTERNAL  PARTS COMMON TO

 OTHER HUMAT PRODUCTS
NHT
STORZ
PIPE
LOCAL
WELDABLE FLANGE
